O-Ring Measuring & Identification Tools
At Daemar, we understand how critical precision is when it comes to sealing solutions. That is why we offer a full range of O-Ring Measuring and Identification Tools to help you quickly and accurately identify the right O-ring for your application.
Featured Tools

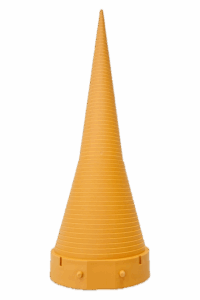

O-Ring Measuring Cone (P/N: O RING CONE-DMR)
The Daemar O-Ring Sizing Cone is a must-have tool for MRO professionals, designed to simplify O-Ring identification with precision and ease.
Start by using the notches at the base to measure the cross section—your O-Ring should fit snugly without being loose. Once the cross section is confirmed, slide the O-Ring down onto the cone and let it settle naturally. The O-Ring should lie flat, without stretching or slack. With permanently molded Dash Numbers and precision-engineered slits, this tool ensures accurate and reliable sizing for quick replacements—eliminating guesswork every time.
O-Ring Measuring Tape (P/N: OST-26)
Daemar’s OST-26 O-Ring Measuring Tape is a quick, reliable tool for identifying O-Ring sizes with precision. Designed for both AS568 and metric standards, this flexible tape measures inside diameters from 2-1/2” to 26”, making O-Ring ID sizing fast and easy.
1. Identify the cross-section of the O-Ring using the tape’s printed legend.
2. Coil tape inside the O-ring with arrows facing outwards ensuring a snug fit.
3. Unwind the tape within the O-Ring’s ID. The size will appear beneath the relevant cross-section arrow.
- Measures O-Rings up to 26” ID
- Supports AS568 and metric sizes
- Durable, flexible design for industrial environments
- Don’t stretch or compress the O-ring.
- Use a clean, flat surface for accuracy.

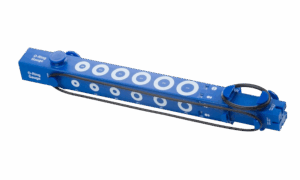

O-Ring Cord Gauge (P/N: O RING GAUGE)
Quickly measure cross-section and I.D. with this handy desktop gauge.
1. First, match your O-ring’s cross-section with the guides at the top.
2. Then, stretch the ring over the pins until it’s straight — your size will appear in the window.
3. For larger diameter O-rings, use the notch on the far side; the size will display in the second window.
O-Ring Identification Chart (P/N: O RING CHART)
Easily identify AS568 O-Ring sizes with Daemar’s O-Ring Chart, designed to measure standard sizes with speed and accuracy.
Place the O-ring over the silhouettes and the corresponding page to the cross-section and move over and over the various sizes until the correct size is found.
- Covers 239 AS568 sizes
- Fast, visual identification
- Ideal for bench-top use in repair or inspection settings
